Hydraulic Fittings

Let’s see the widest collection of Hydraulic Fittings.

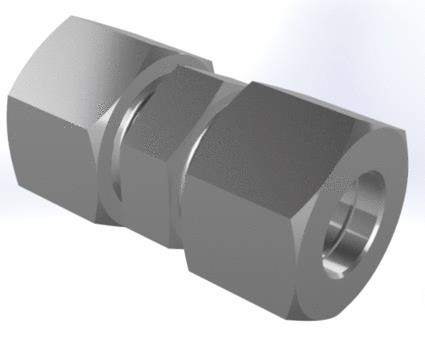

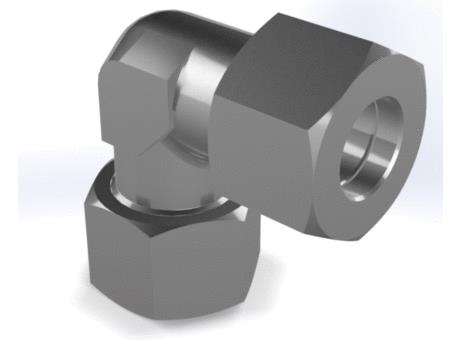

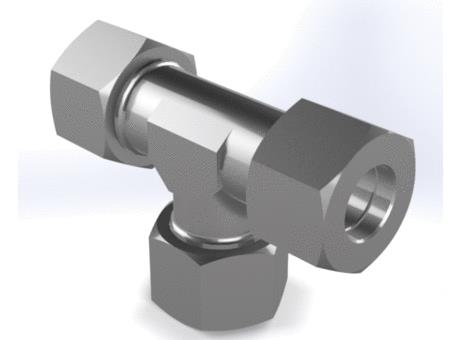

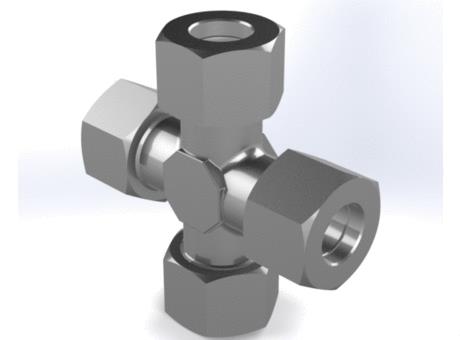

We deal with tube couplings in Carbon steel and SS 316 Stainless conforming to ISO 8434 and DIN 2353. Size range covers from 6mm to 42mm in Low pressure and 6mm to 38mm in High pressure series. Tube couplings are tested as per ISO 19879.

Reference Standards:

• ISO 8434 – 1- 24° Cone Bite Type
• IS:8805 – 24° Cone Bite Type
• DIN 2353 – 24° Cone Bite Type
• ISO 8434 – 4- 24° Cone Weld on Nipple Type
• BS 5200 – 60° Hose end

Surface Protection:

Fittings are Zinc Plated with Trivalent Passivation (white) as per standard.

Weldable nipples are phosphated and oiled.

Nominal Pressure rating for fittings (O.D)

Series L

• 6,8,10,12,15 – 250bar
• 18,22 – 160bar
• 28,35,42 – 100bar

Series S

• 6,8,10,12 – 630bar
• 16,20,25 – 400bar

30,38 – 250bar

Choose from the wide range of Hydraulic Fittings.
